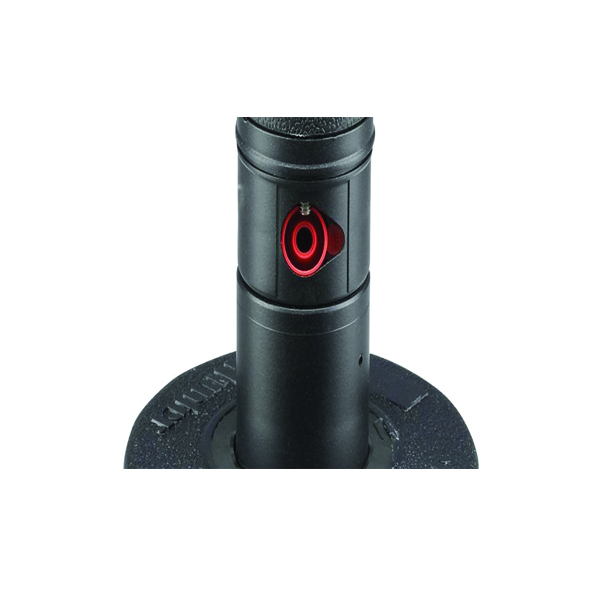

G70B
G70B golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body. Plus PressurePort™ nozzling system reduces velocity and pressure to the secondary nozzles while increasing droplet size.
NOZZLE RANGE
- #15 to #28
NOZZLE CHOICE
- 6 standard trajectory (25 degrees)
OPERATING SPECIFICATIONS
- Discharge rate: 2.95 - 7.66 m3/hr, 49.2 - 127.6 l/min
- Radius: 16.2 - 22.9 m
- Pressure range: 3.4 - 6.9 Bar, 344 - 689 kPa
- Pressure rating: 1000 kPa
