DXA-1802
- Dual channel direct coupled amplifier.
- 1800 Watts rated output.
- Rugged & reliable. Designed to work continuously under stringent operating conditions.
- High fidelity sound. Ideal for high-end music programmes.
SPECIFICATIONS:
Continuous Rated Power
.
Stereo/Mono - 8Ω 370W + 370W RMS, 4Ω 650W + 650W RMS, 2Ω 900W + 900W RMS
Bridged Output - 8Ω 1300W RMS, 4Ω 1800W RMS
Single Channel Driven Output - 8Ω 385W RMS, 4Ω 720W RMS,
2Ω 1100W RMS
THD + N - 0.5%
Frequency Response (-1dB) - 20-20,000Hz
Power Bandwidth (0.5% THD) - 20-20,000Hz
Input Sensitivity - 0dBm (775mV)
Input Impedance - 10k Unbalanced , 20k Balanced
S/N Ratio - 95dB
Channel Separation - 65dB at 1kHz
Damping Factor - 400 : 1 (8Ω)
Slew Rate - 35V/µs
Protections - Temperature, DC, RFI, Short Circuit,
Overload, AC over voltage, Built-in limiter

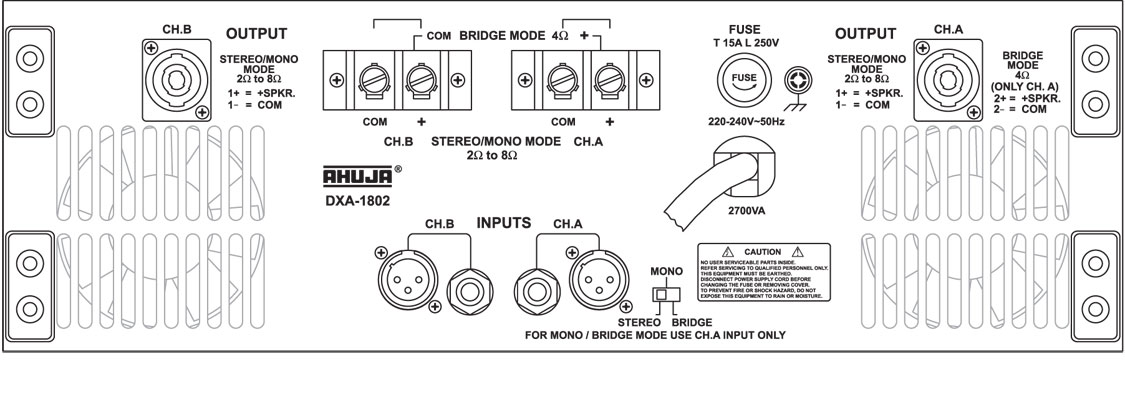

Input Connectors - 2 × XLR, Stereo Phone Jack 6.3mm
Output Connectors - Speakon 4-Way, Heavy Duty Screw
Terminals each channel
Cooling - Variable Speed DC Fan with Temperature Sensing
Front Panel Controls - 2× 21 Step Level Attenuators
Indicators - ON, Mode (Stereo, Mono, Bridge) Signal levels,
Clip, Temperatures, Fault, Overload (Ch. A & B)
Power Consumption - 2700VA @ 240V / 50Hz
Dimensions - W482 × H165 × D500mm
Weight - 26.0kg
